CMB 3-37 PT(CM PT 3-3)

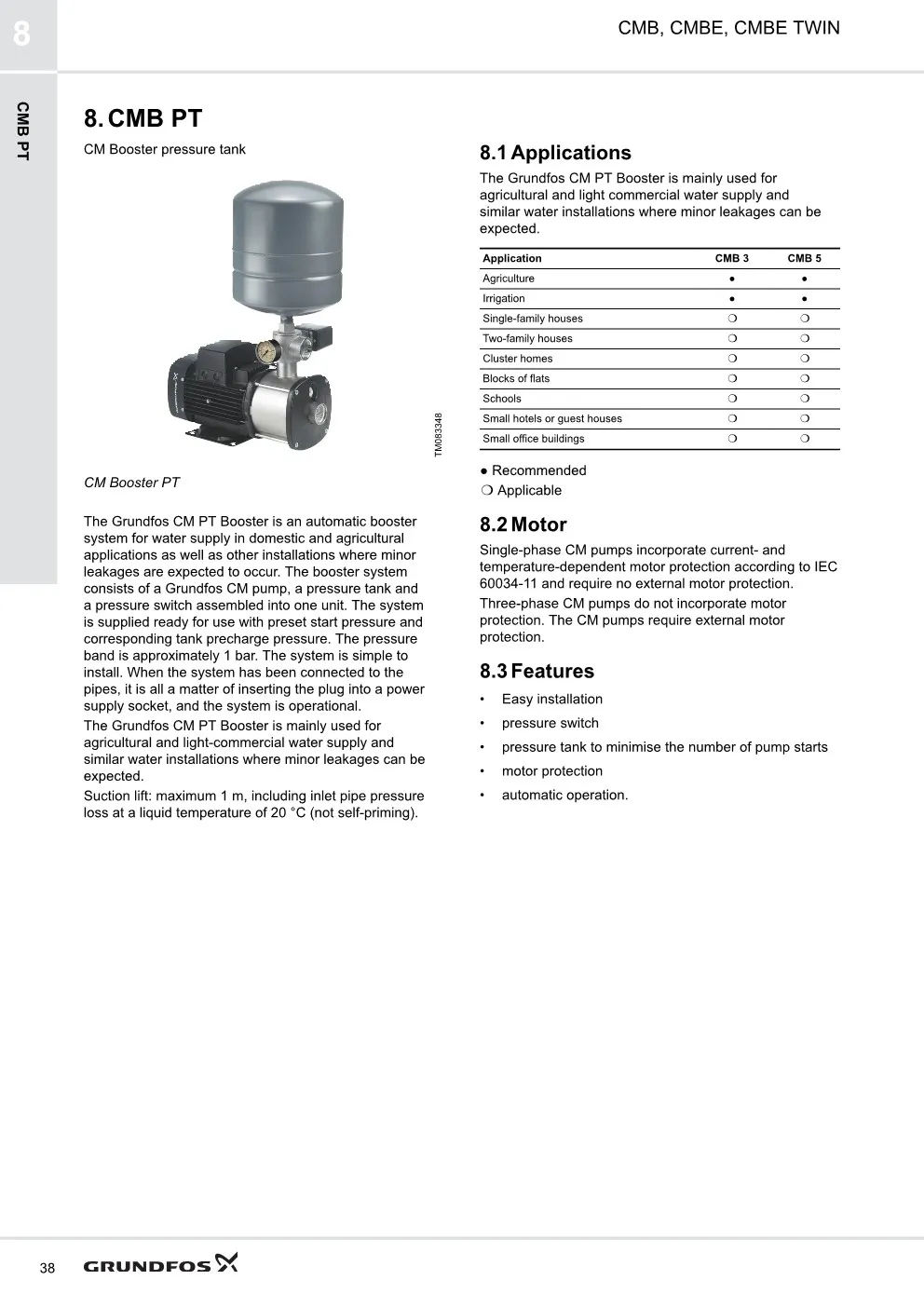

The Grundfos CM PT Booster is an automatic booster system for water supply in domestic and agricultural
applications as well as other installations where minor leakages are expected to occur. The booster system consists of a Grundfos CM pump, a pressure tank and
a pressure switch assembled into one unit. The system is supplied ready for use with preset start pressure and corresponding tank precharge pressure. The pressure band is approximately 1 bar. The system is simple to install. When the system has been connected to the pipes, it is all a matter of inserting the plug into a power
supply socket, and the system is operational.
The Grundfos CM PT Booster is mainly used for agricultural and light-commercial water supply and similar water installations where minor leakages can be expected.
Suction lift: maximum 1 m, including inlet pipe pressure loss at a liquid temperature of 20 °C (not self-priming).

Spesifikasi :

Kapasitas : 4.3 m3/h (71.6 l/min)

Ketinggian : 34 Mtr

Sistem tekanan max 10 bar

P1 : 587 W

Tegangan listrik 1x220-240 V 50/60 Hz

Frekuensi start/stop max 60 per jam.

Inlet / Outlet : 1" / 1"

Harga Rp. 13.730.700
